CNCH-OBD2-1

Detailed Product Description：

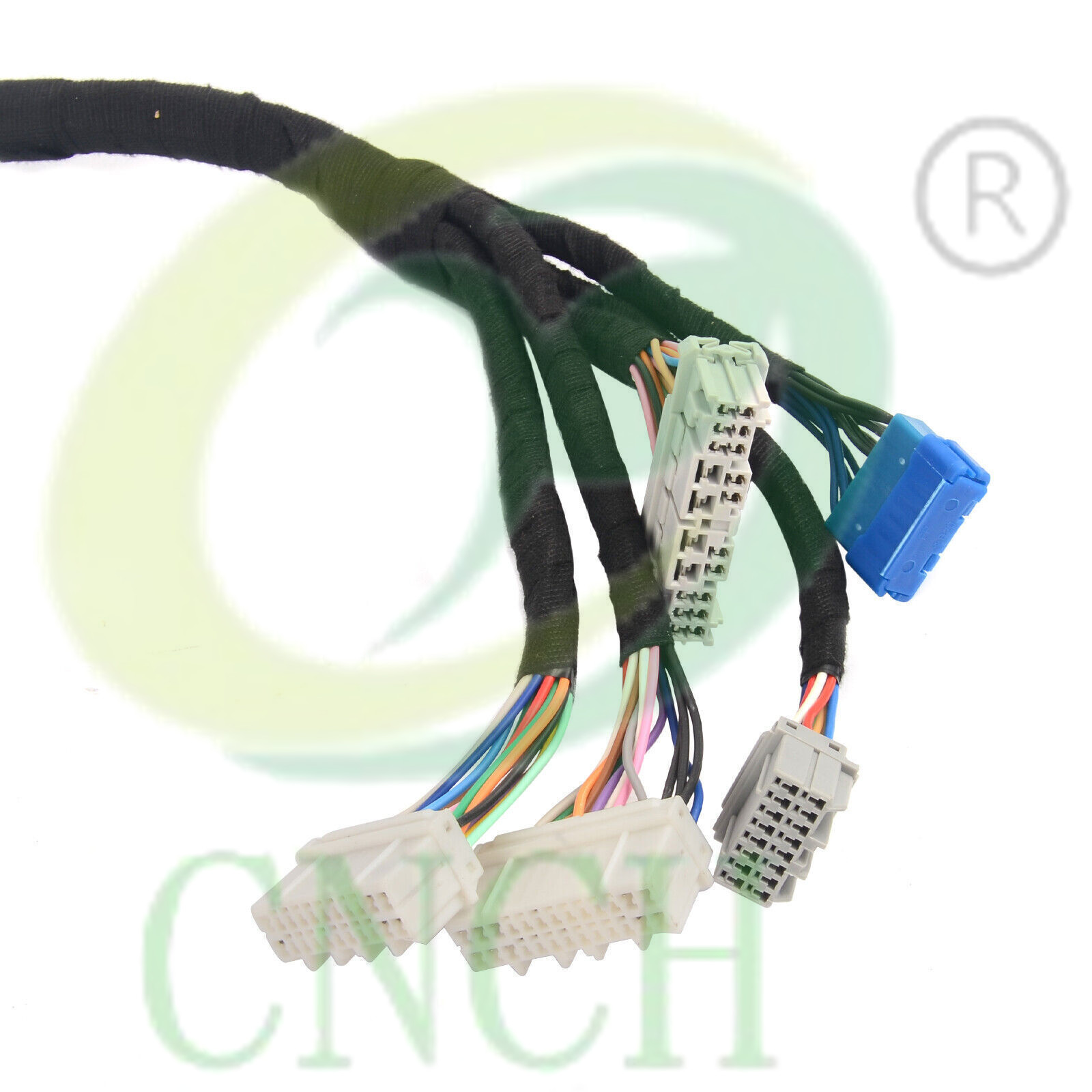

●Universal  B/D-Series Budget Tucked Engine Harness, This routing method is ideal for our (RHD) Right Hand Drive customers however NOT exclusive to RHD chassis and does work fine on a LHD chassis.

●The engine harnesses are made with OBD1 (92-95) ECU Connectors.

●An ECU adapter must be used for OBD2a or OBD2b ECU's if necessary

●The harness does not support USDM OBD2 ECU's.

●All of our harnesses are built with OEM Quality , And we can customize according to your requirements,

●We can paste customer's brand LOGO and packaging according to customer's requirements,

●High quality heat resistant flame retardant material, high quality copper reinforced ring terminal, TXL Or Teflon wire and universal color code.

●You can choose threaded pipe, braided pipe, or any other material you like for the outer sheathing of the harness.

●All heavy interference circuits are protected and grounded with proper wire covering

●All wiring harnesses are 100% qualified by quality inspection before shipment.And resistance checked to ensure no voltage fluctuations

●Each branch is installed with performance markers for easy installation

HARNESS CONNECTOR LIST:

- VTEC solenoid

- VTC

- Oil pressure sending unit

- Crank Sensor (CKP) (02-04 K20 style)

- Coils 1-4 Cam (CPS) Exhaust Side

- Top Dead Center sensor (TDC) Intake Side

- Engine Coolant Temp (ECT) (02-04 K20 style)

- Knock Sensor (KS) (02-04 K20 style)

- Intake Air Temperature (IAT)

- Alternator

- Manifold Air Pressure (MAP)

- Throttle Position Sensor (TPS)

- Idle control motor

- Electronic speed sensor (VSS)

- Injectors 1-4 h20 sending unit (for gauge cluster)

- Reverse Lights

- Reverse Lockout solenoid

- Starter signal

- ECU plugs A and B

- Power distribution cap

- Ground

- 2 Extra Wires.
