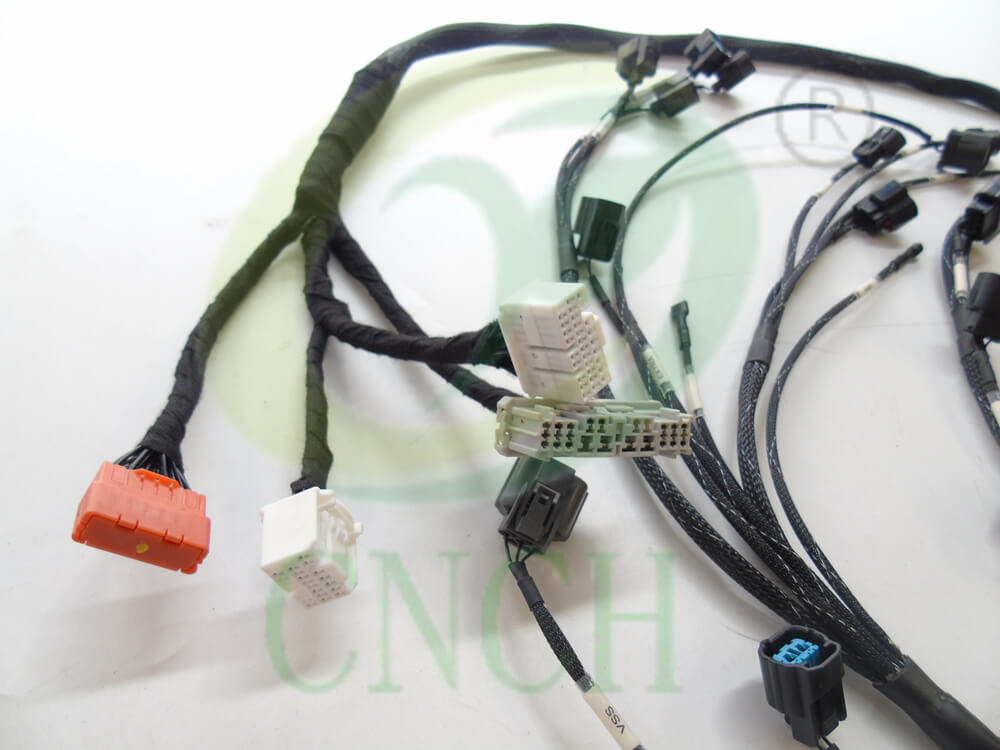

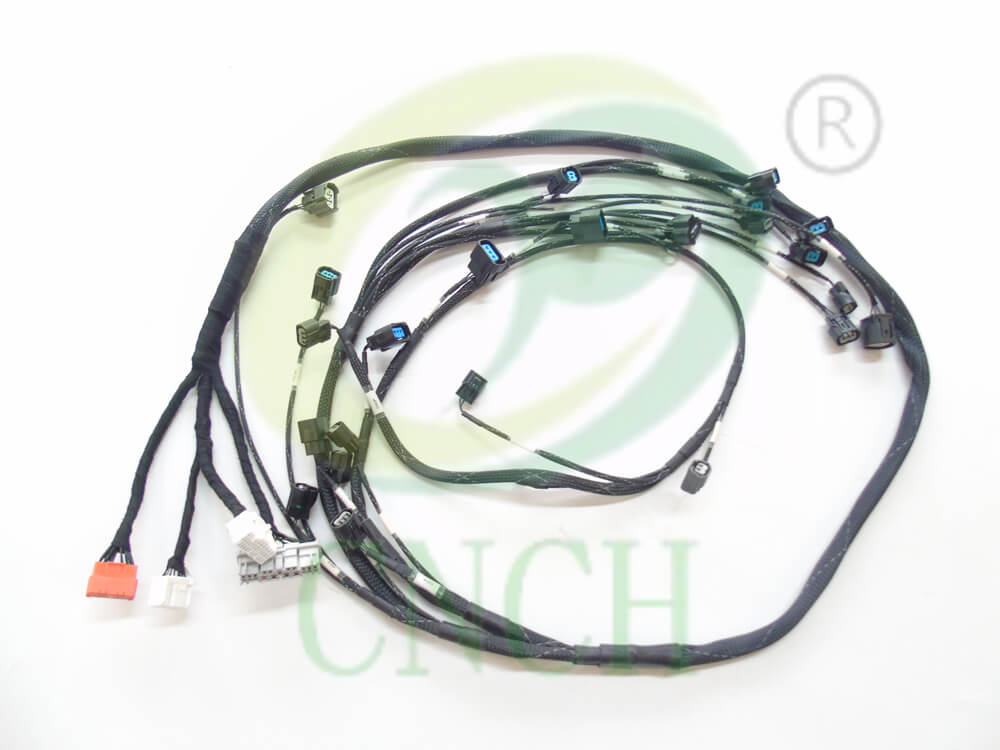

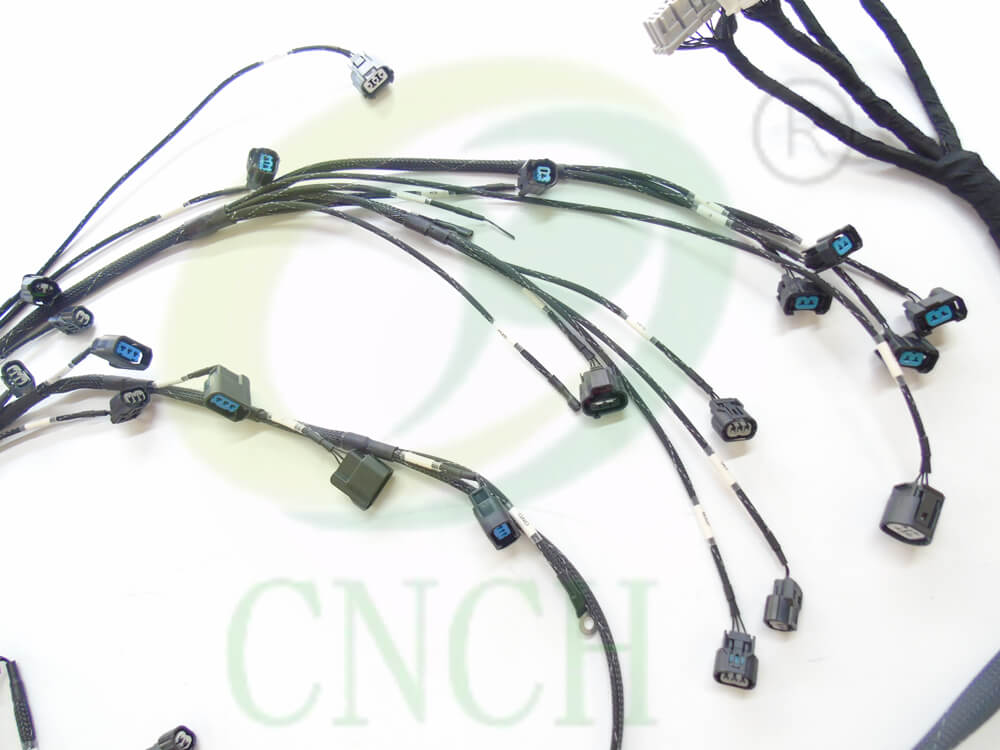

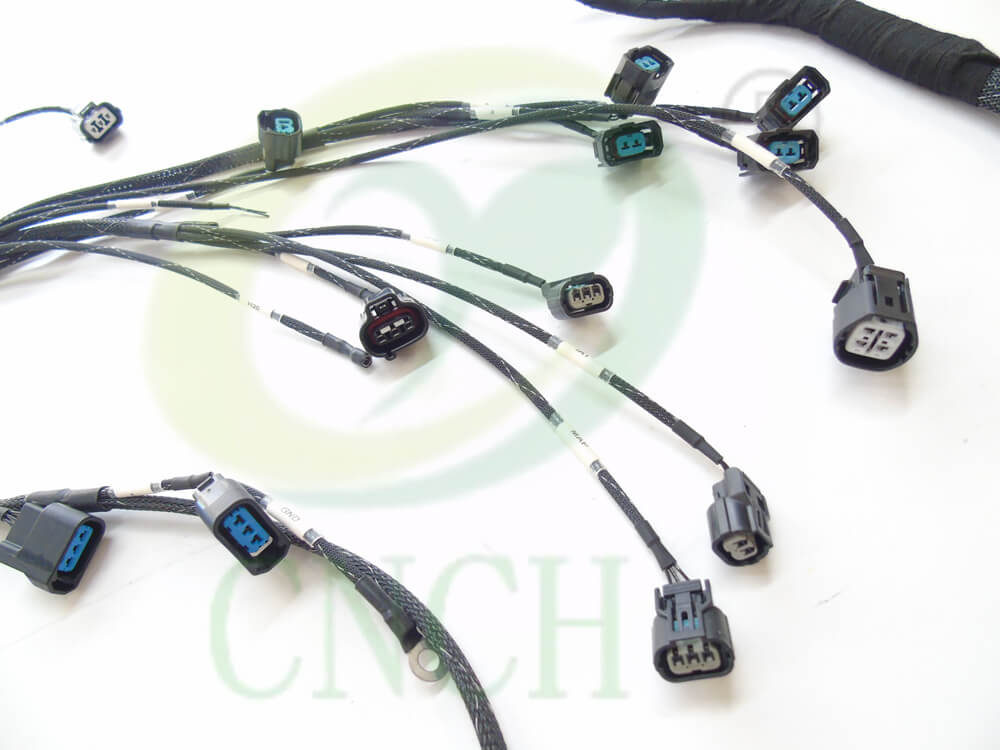

OBD2 Budget Tucked K-Series Harness K20 K24 Civic Integra DC2 EG EK (no power cord)
CNCH-K20A-2(no power cord )
| Part Number： CNCH- K20A-2 | Manufacturer：CNCH Wiring harness |
| Warranty：5 Year | Application：Automotive |
| Material：Copper /PA66/PBT | Operating Temperature (Max) ： -55℃ ~ +150℃ |
| Sealed/Unsealed：Sealed | Whether material flame retardant：Yes |
| Support customize：Yes | Support custom packing：Yes |
| MOQ:1PCS | Delivery Time：About 3~5 work days |
Applications:
K-Swap Cars
05-06 RSX Type S
05-06 RSX Base
01-05 Civic EP3 (Type S or K24 Swap)
HARNESS CONNECTOR LIST:
VTEC solenoid
VTC
Oil pressure sending unit
Crank Sensor (CKP)(02-04 K20 style)
Coils 1-4
Cam (CPS) Exhaust Side
Top Dead Center sensor (TDC) Intake Side
Engine Coolant Temp (ECT) (02-04 K20 style)
Knock Sensor (KS)(02-04 K20 style)
Intake Air Temperature (IAT)
Alternator (02-04 K20 style)
Manifold Air Pressure (MAP)
Throttle Position Sensor (TPS)
Idle control motor
Electronic speed sensor (VSS)
Injectors 1-4
h20 sending unit (for gauge cluster)
Reverse Lights
Reverse Lockout solenoid
Starter signal

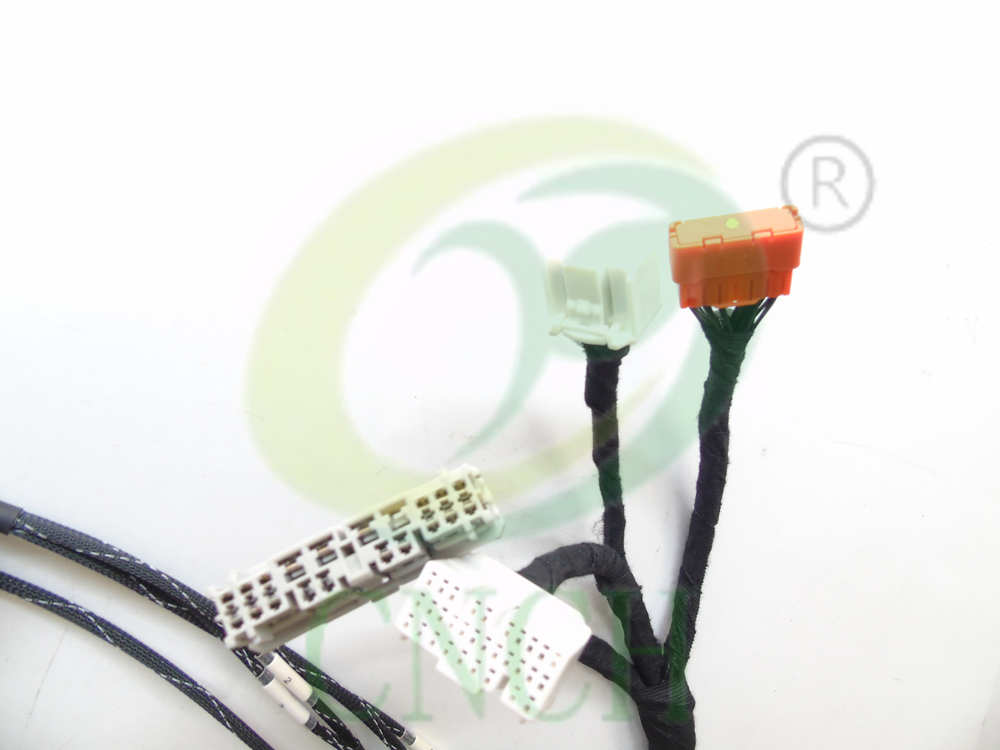

Computer plugs A and B
Power distribution cap
Ground
