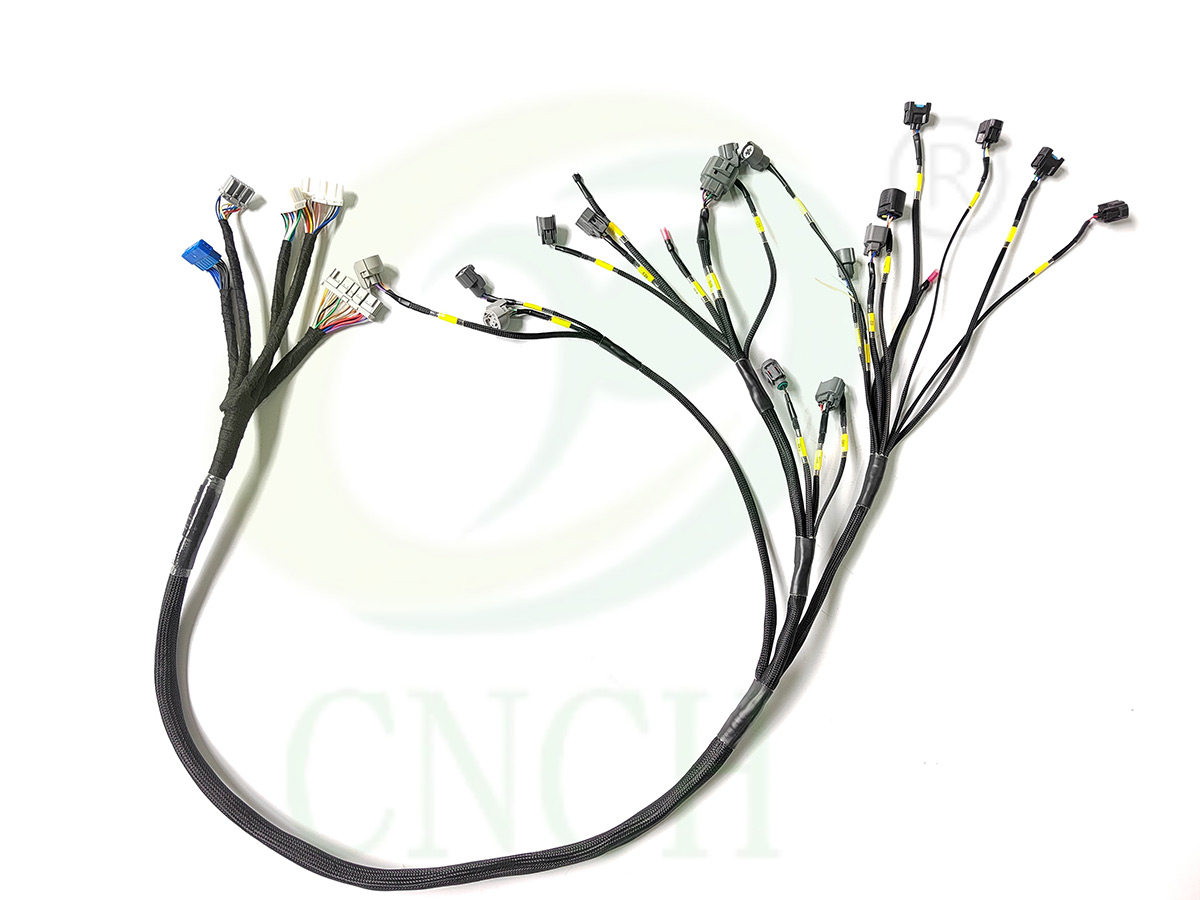

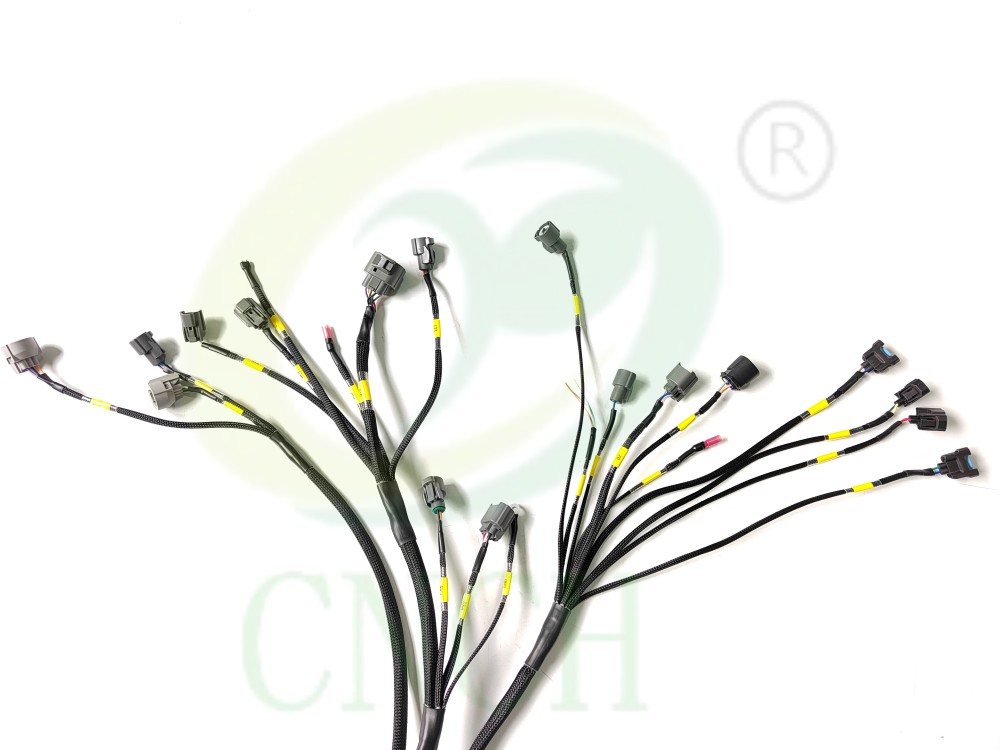

OBD2 Budget D & B-series Tucked Engine Harness Civic Integra B16 B18 D16
CNCH-OBD2-1
| Part Number： CNCH- OBD2-1 | Manufacturer：CNCH Wiring harness |
| Warranty：5 Year | Application：Automotive |
| Material：Copper /PA66/PBT | Operating Temperature (Max) ： -55℃ ~ +150℃ |
| Sealed/Unsealed：Sealed | Whether material flame retardant：Yes |
| Support customize：Yes | Support custom packing：Yes |
| MOQ: 1PCS | Delivery Time：About 3~5 work days |
-All engine harnesses are made with OBD1 (92-95) ECU Connectors.
-An ECU adapter must be used for OBD2a or OBD2b ECU's if necessary.
-Our harness does not support USDM OBD2 ECU's.
Aftermarket ECU's using OBD2 plugs & Non-US OBD2 ECUs are compatible! (except for H22 and GSR stock computers).
HARNESS CONNECTOR LIST:
• Oil Pressure Sending Unit • Knock Sensor • Intake Air Temperature (Intake Manifold Style)
• Oxygen Sensor (Primary 4 Wire) • OBD2 Alternator Plug type
• 2 Extra Wires

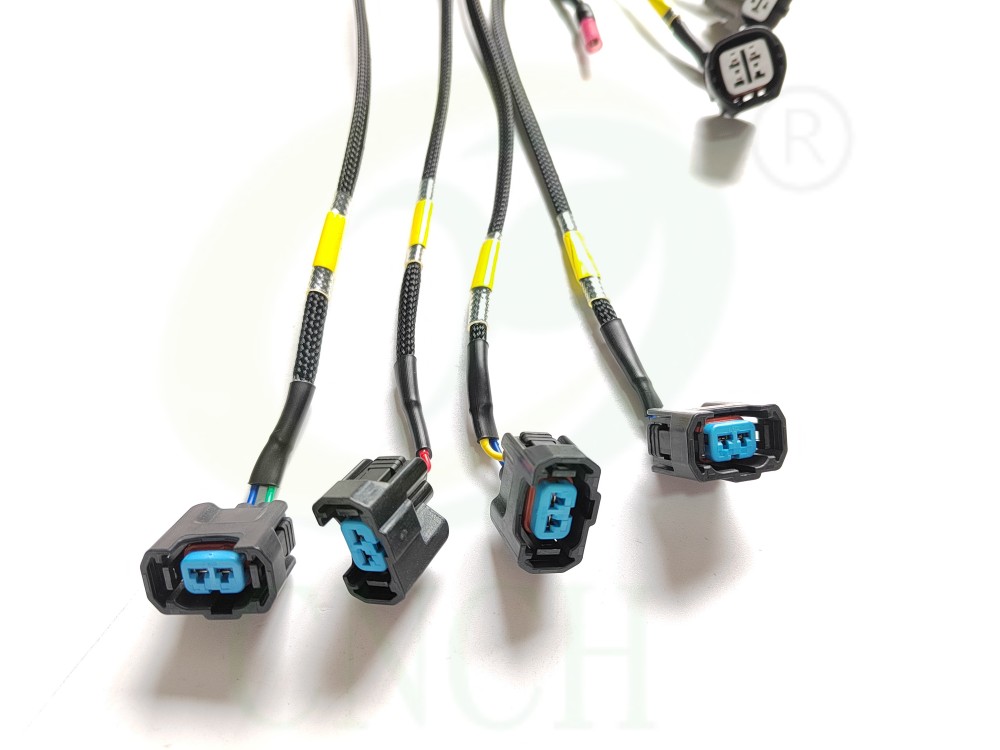

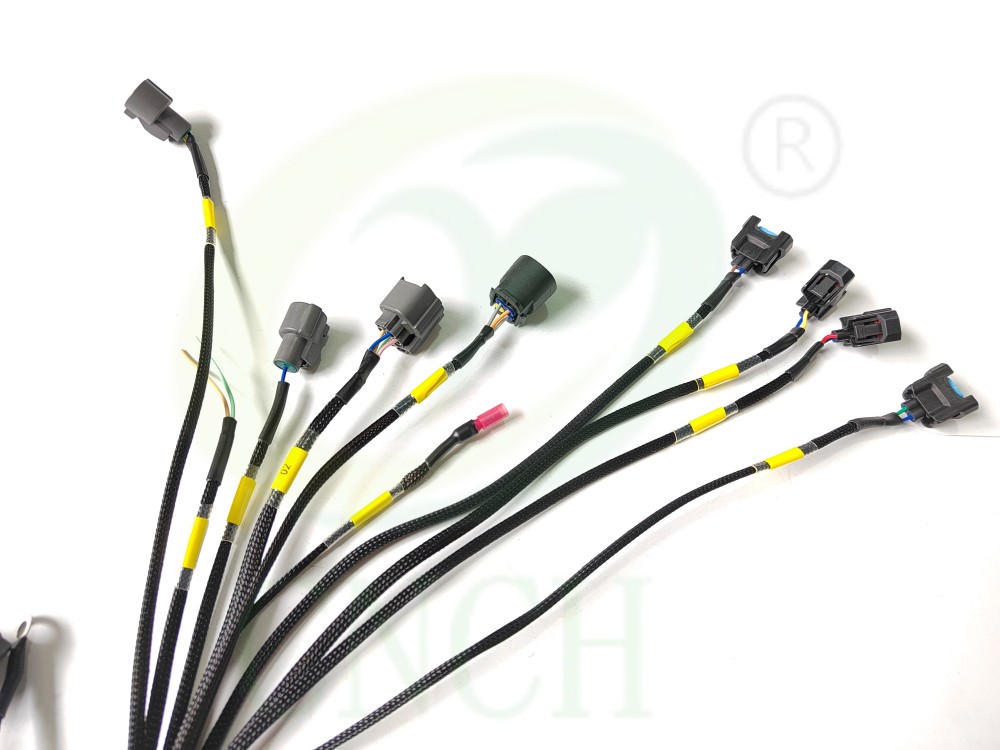

• OBD2 Injectors 1-4 • MAP Sensor • TPS (Throttle position)

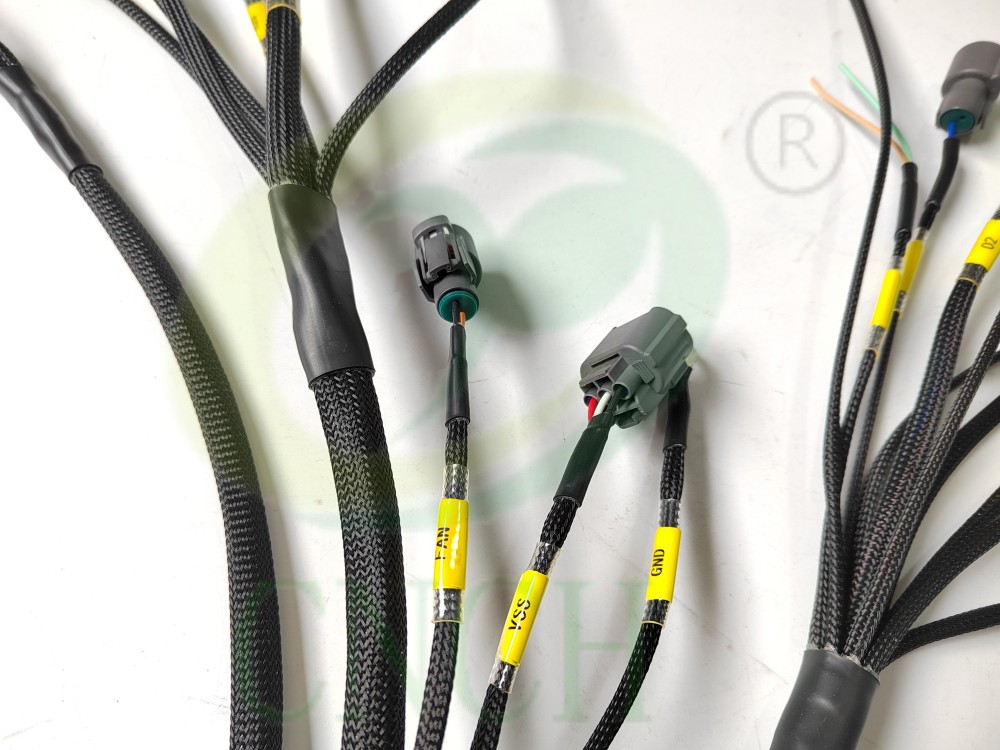

• Idle Control Motor • Electronic Speed Sensor • Ground

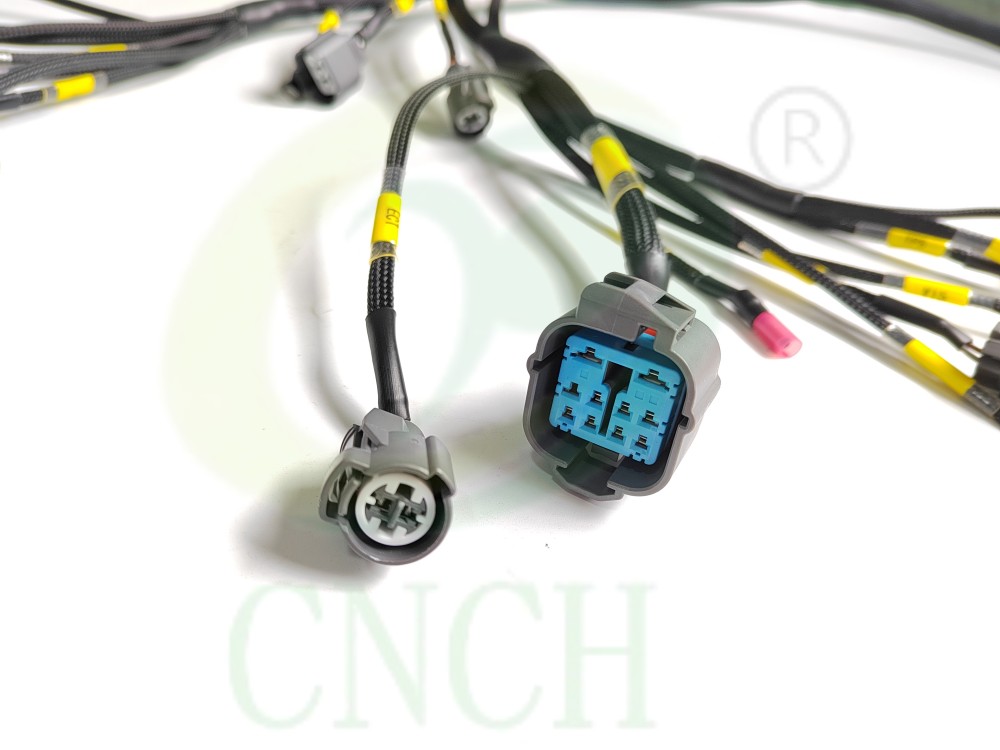

• Fan Switch • OBD2 10-pin Distributor plug
• H20 Sending Unit (for Gauge Cluster)
• Reverse Lights • Engine Coolant Temp • Starter Signal

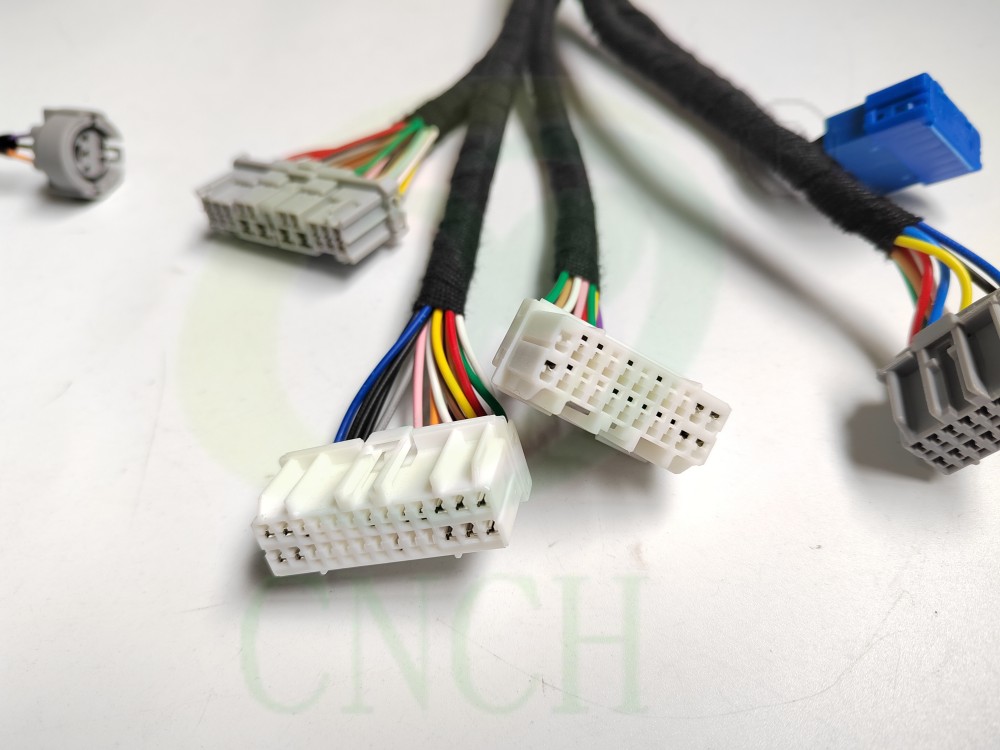

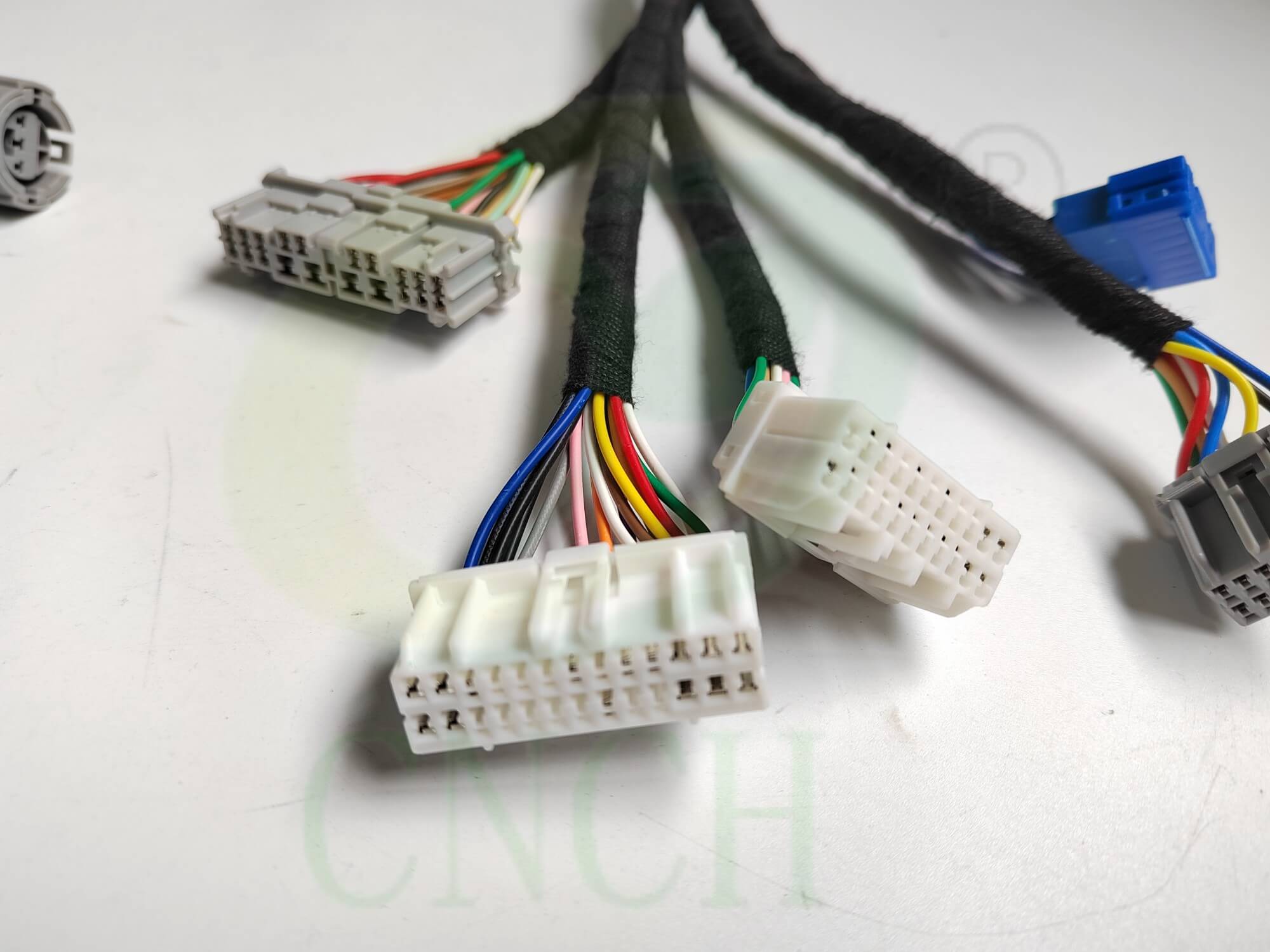

• VTEC Solenoid • OBD1 ECU Plugs A,B,D • Power Distribution Cap
