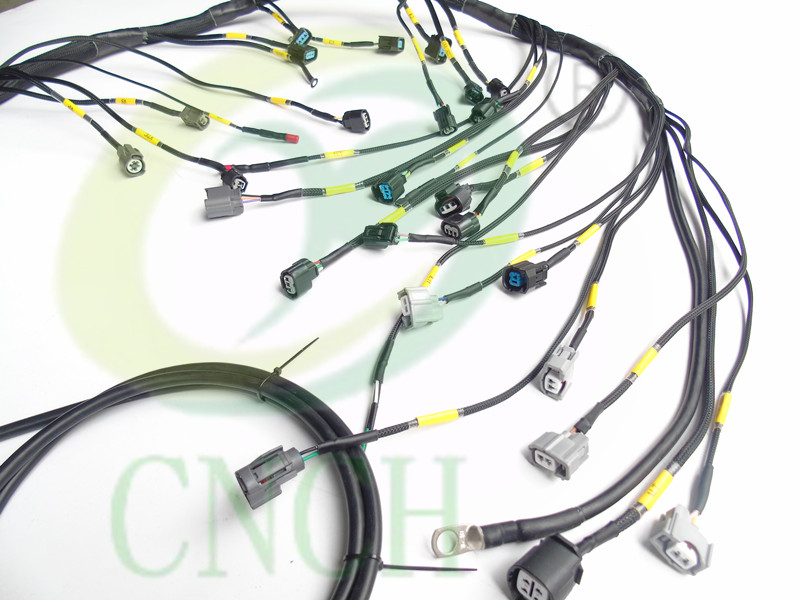

K-Series RSX Civic Si EP3 K-Swap Tucked Engine Harness （With power cord）
CNCH-K20A-1(with power cord)
| Part Number： CNCH-K20A-1 | Manufacturer：CNCH Wiring harness |
| Warranty：5 Year | Application：Automotive |
| Material：Copper /PA66/PBT | Operating Temperature (Max) ： -55℃ ~ +150℃ |
| Sealed/Unsealed：Sealed | Whether material flame retardant：Yes |
| Support customize：Yes | Support custom packing：Yes |
| MOQ:1PCS | Delivery Time：About 3~5 work days |
APPLICATIONS:
K-Swap Cars
02-04 RSX Type S
02-04 RSX Base
01-05 Civic EP3 (Type S or K24 Swap)
Features:
All plugs included except EVAP and AC
Covering is gas and diesel resistant and rated for -55° C to 150° C (-67° F to 320° F)
SAE Certified Automotive Grade Wiring
All plugs are labeled
Tucked design
Harness runs over valve cover (Can be covered with coil pack cover)
Works with fuse box in stock location or relocated under dash.
Injector wiring runs from under manifold between middle runners.
Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)
Includes single wire temp sensor wire (For k-swap cars stock cluster)
3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)
Extra knock sensor plug included.
Each harness is inspected and tested before shipping.
RSX injectors plugs come standard (RDX injectors can be easily switched)
