CNCH-1018

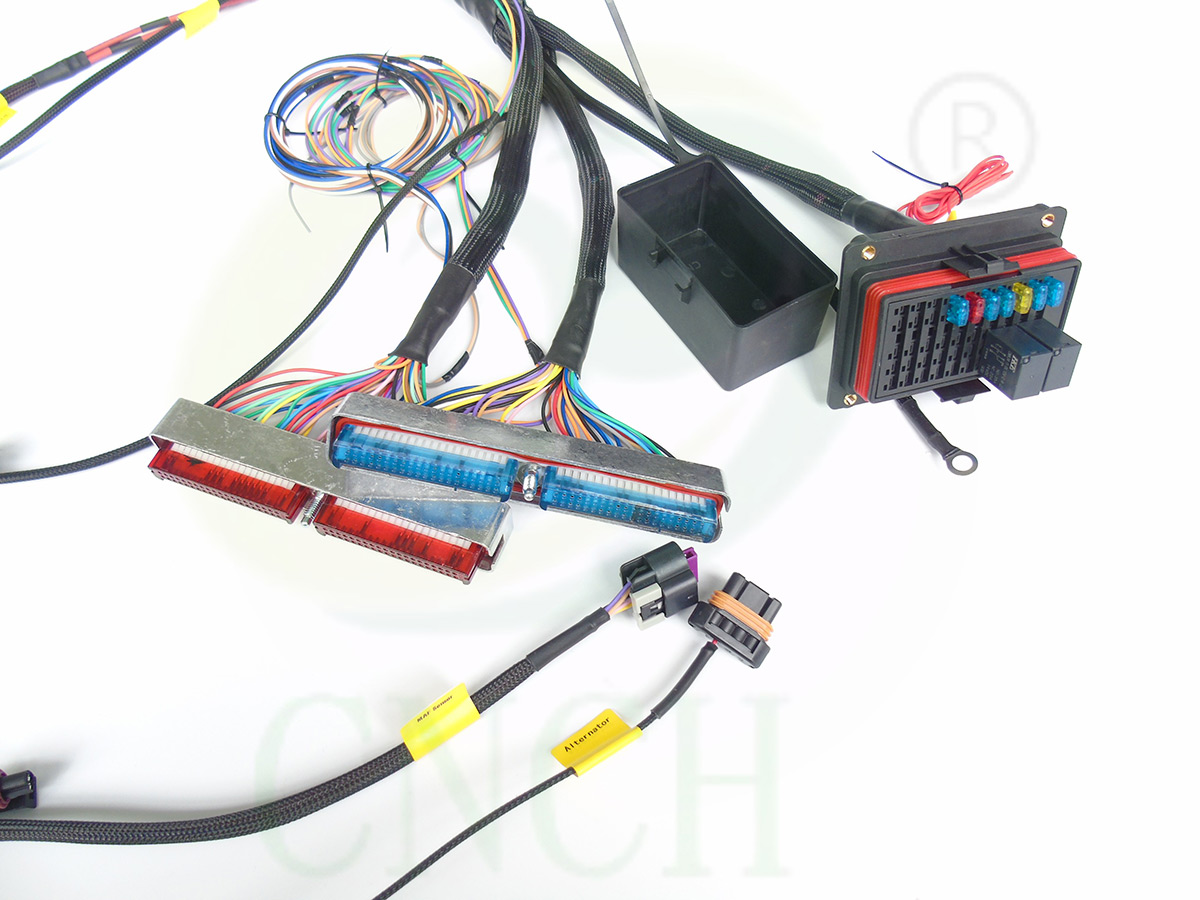

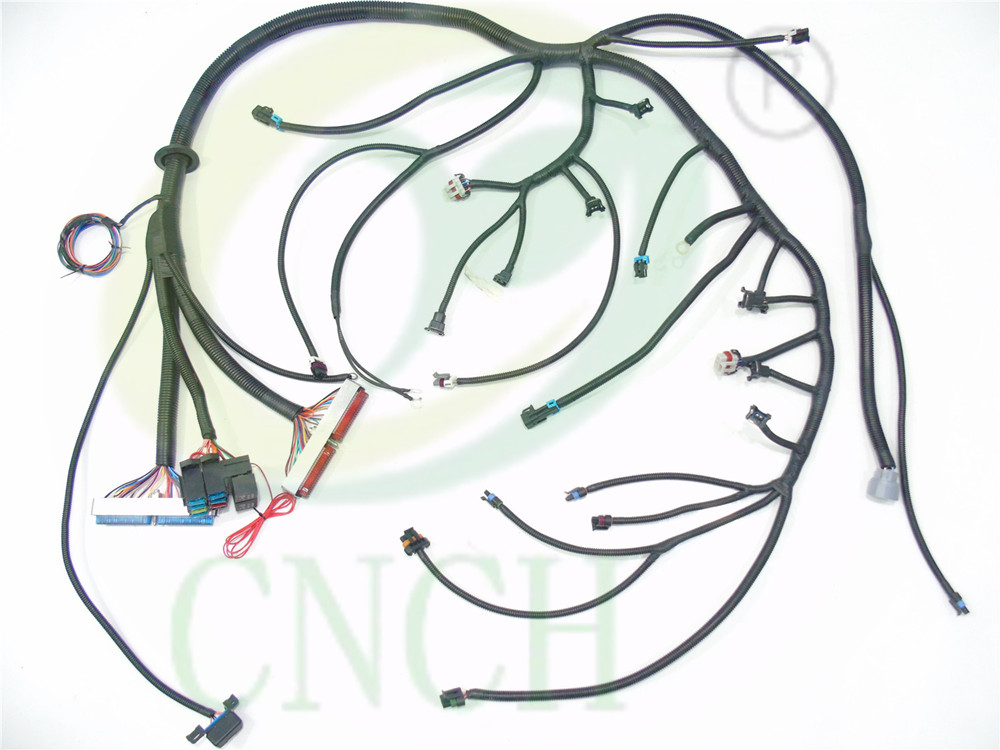

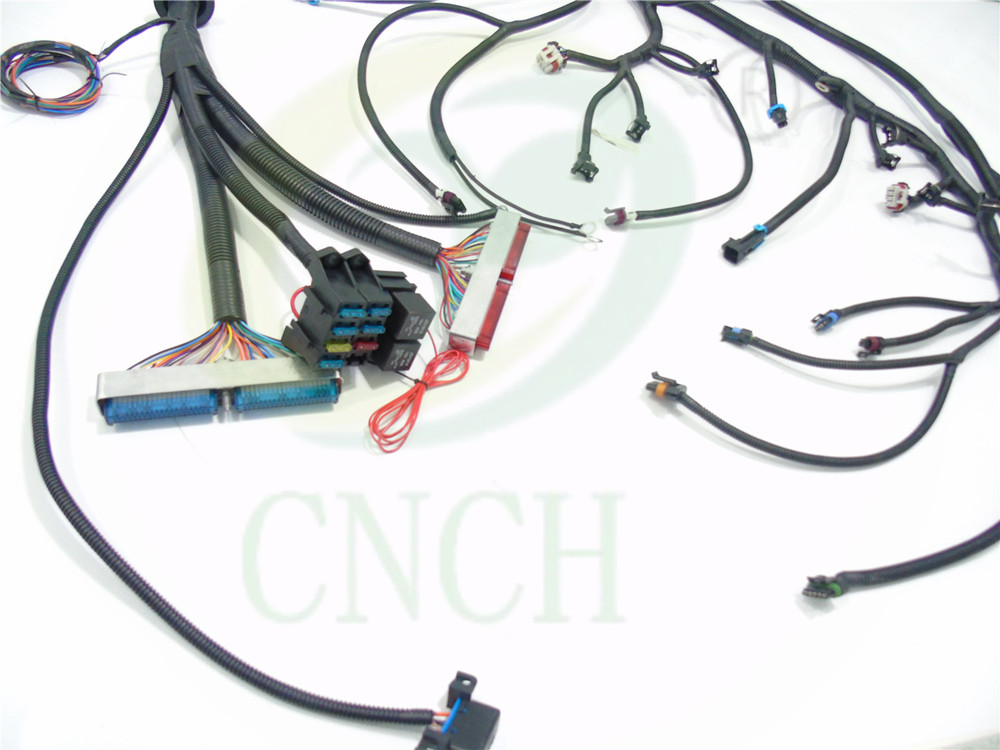

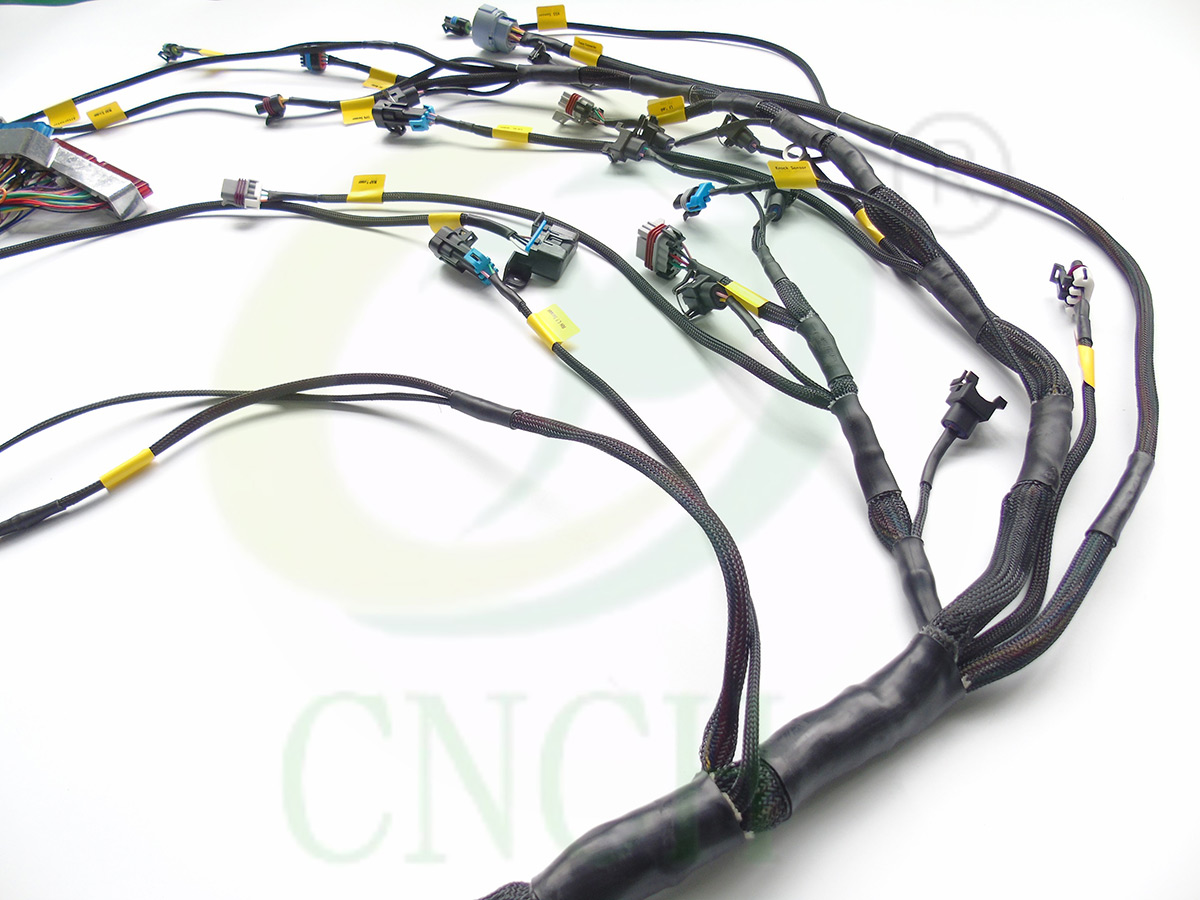

1999 - 2003 VORTEC 4.8 5.3 6.0 PSI STANDALONE WIRING HARNESS W
| Part Number：CNCH-1018 | Manufacturer：CNCH Wiring harness |
| Warranty：5 Year | Application：Engine wiring harness |
| Material：Copper /PA66/PBT | Operating Temperature (Max) ： -55℃ ~ +150℃ |

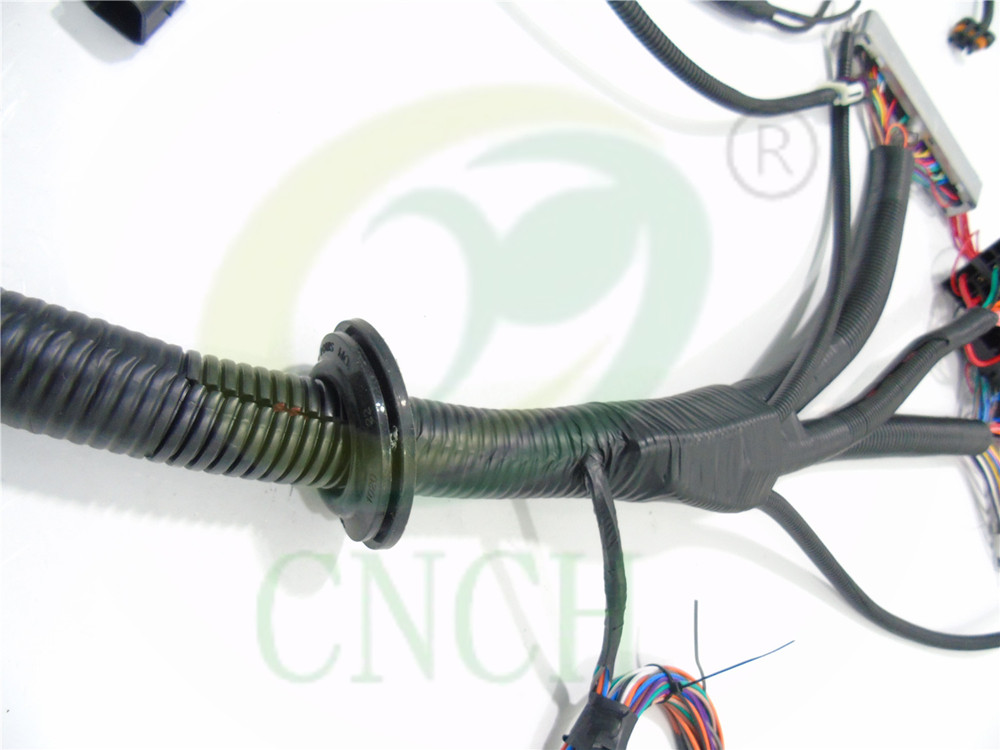

| Sleeve:Braided tube,PVC tube, Corrugated pipe, Heat shrink | Whether material flame retardant：Yes |
| Support customize：Yes | Support custom packing：Yes |
| PIN: Custom-made | Length: Custom-made |
| Wire specification:10-20AWG | Sealed/Unse：Sealed |
| MOQ:1PCS | Delivery Time：About 3~15 working days |
APPLICATION: 1999 - 2003 CHEVROLET, GMC, CADILLAC AND HUMMER TRUCK ENGINES (DRIVE BY CABLE ONLY) WITH 4L60E OR 4L80E TRANSMISSIONS.
CONNECTIONS FOR:
Fuse/Relay Box
Fuel Pump Control (Relay included)
Fan controls (Relays and fuse available separately KIT-1010)
Check Engine Light, Speedo output, Tachometer, OBD2 Port
IAC and TPS on DBC setups

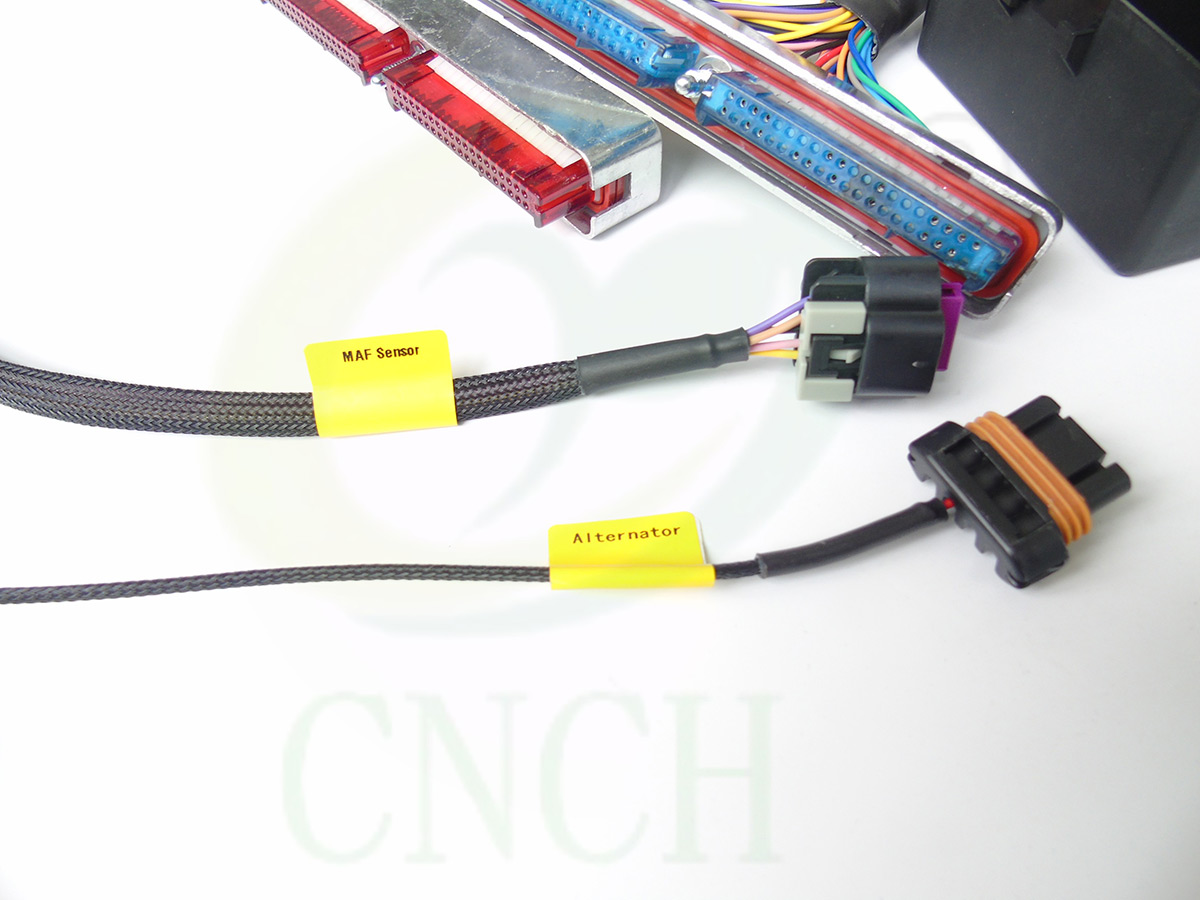

MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Automatic or Manual Transmission control
Knock Sensors
