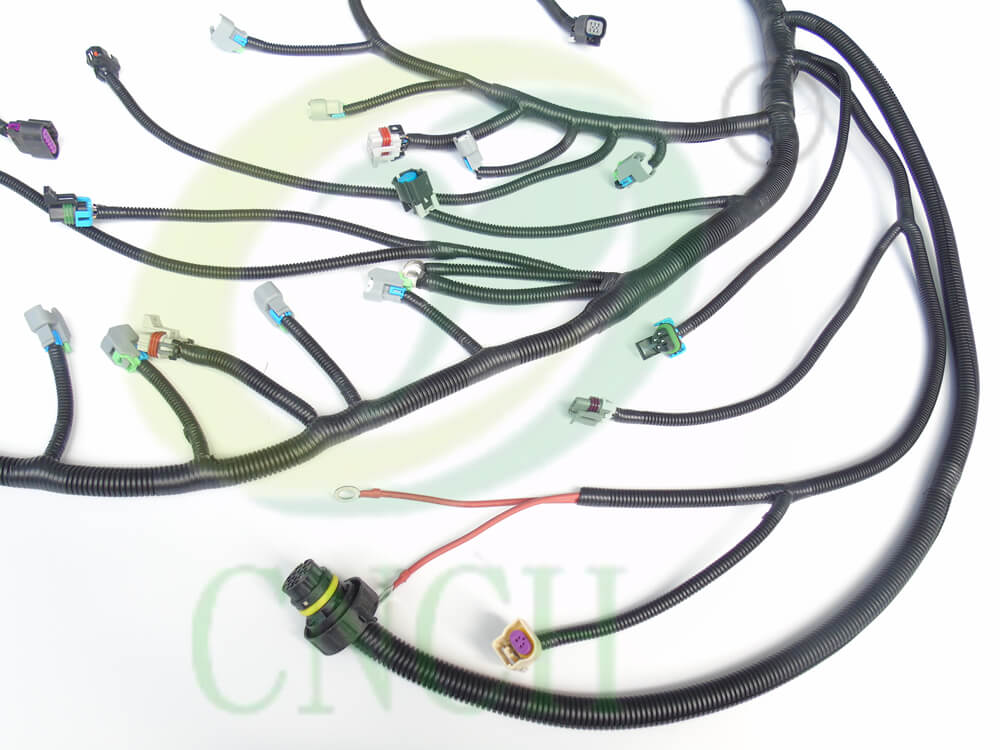

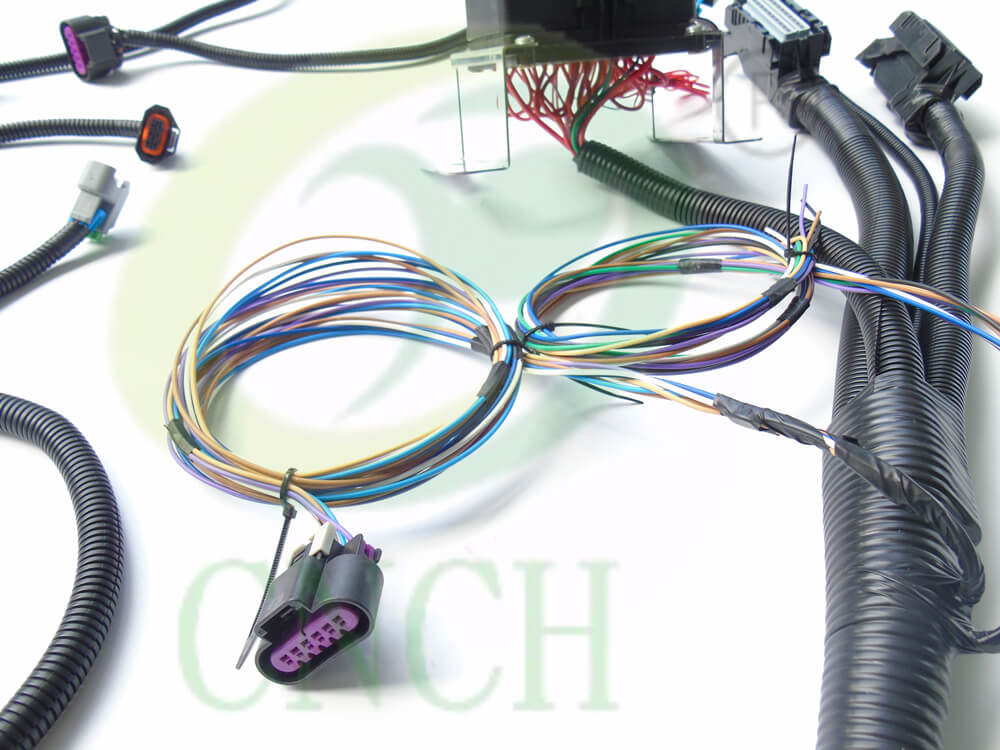

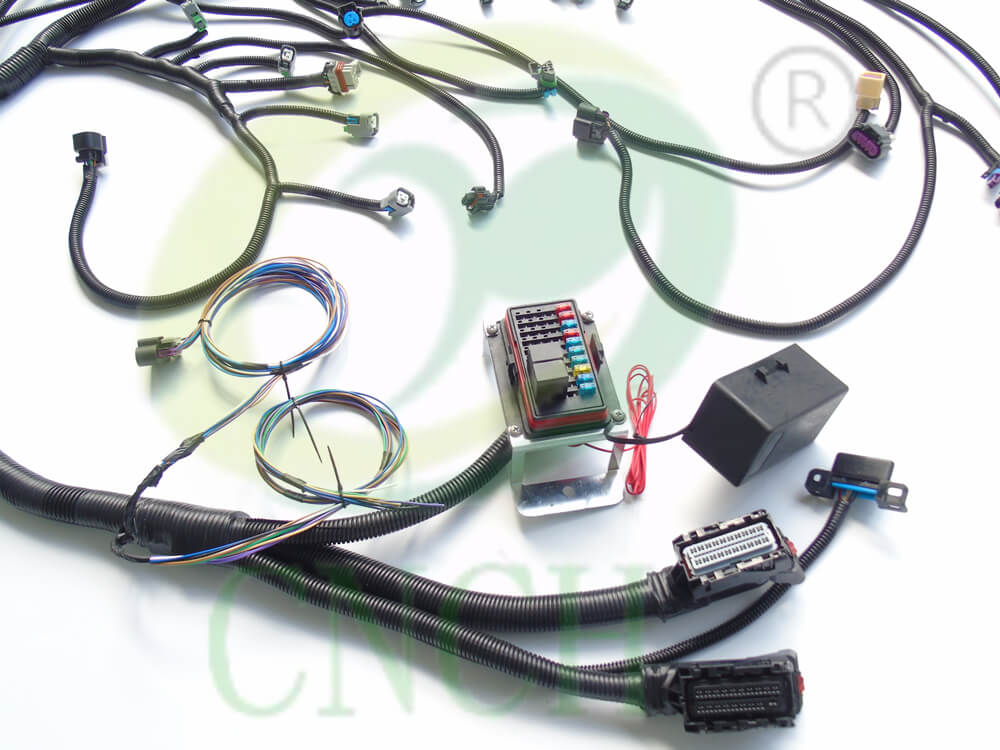

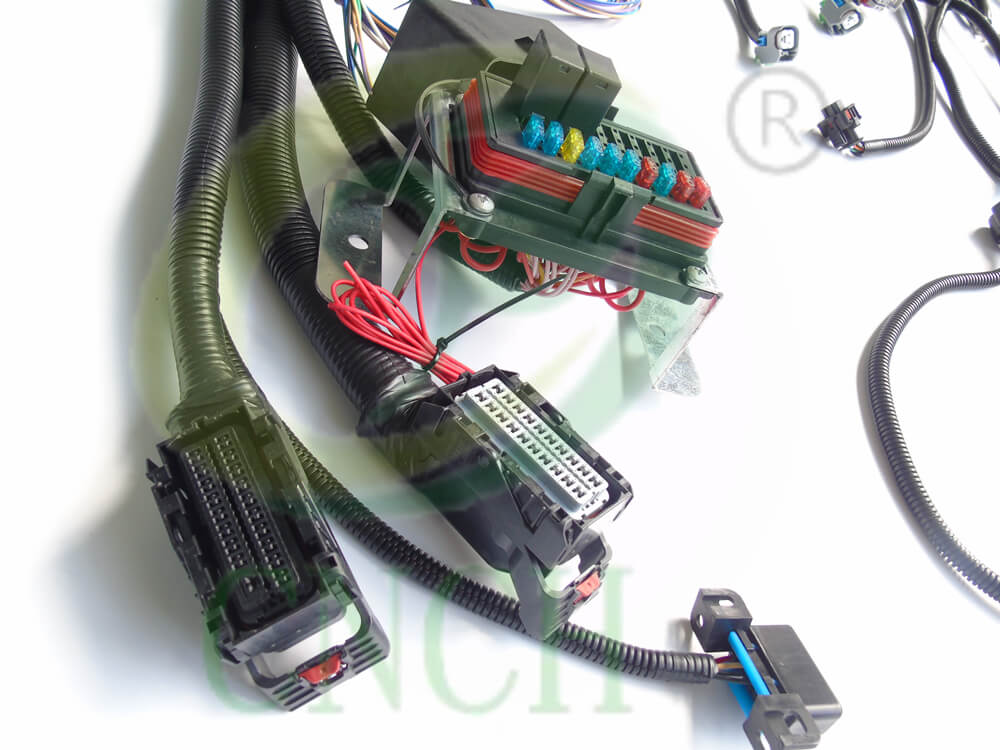

07 - '14 LH6/LY5/LMG/LH8 (5.3L) w/ 6L80E Standalone Harness
CNCH-1073
| Part Number：CNCH-1073 | Manufacturer：CNCH Wiring harness |
| Warranty：5 Year | Application：Engine wiring harness |
| Material：Copper /PA66/PBT | Operating Temperature (Max) ： -55℃ ~ +150℃ |
| Sleeve:Braided tube,PVC tube, Corrugated pipe, Heat shrink | Whether material flame retardant：Yes |
| Support customize：Yes | Support custom packing：Yes |
| PIN: Custom-made | Length: Custom-made |
| Wire specification:10-20AWG | Sealed/Unse：Sealed |
| MOQ:1PCS | Delivery Time：About 3~15 work days |
APPLICATION: 2007 - 2014 GM VORTEC TRUCK LH6, LY5,LM5, LMG, LH8 ENGINES WITH 6L80E OR 6L90E
CONNECTIONS FOR:
Fuse/Relay Box
Fuel Pump Control (Relay included)
Fan controls (Relays and fuse available seperately KIT-1010)
Check Engine Light, Speedo output, Tachometer, OBD2 Port
Accelerator Pedal and Throttle Body control (DBW setups)
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Automatic Transmission control
Knock Sensors
